Product Overview

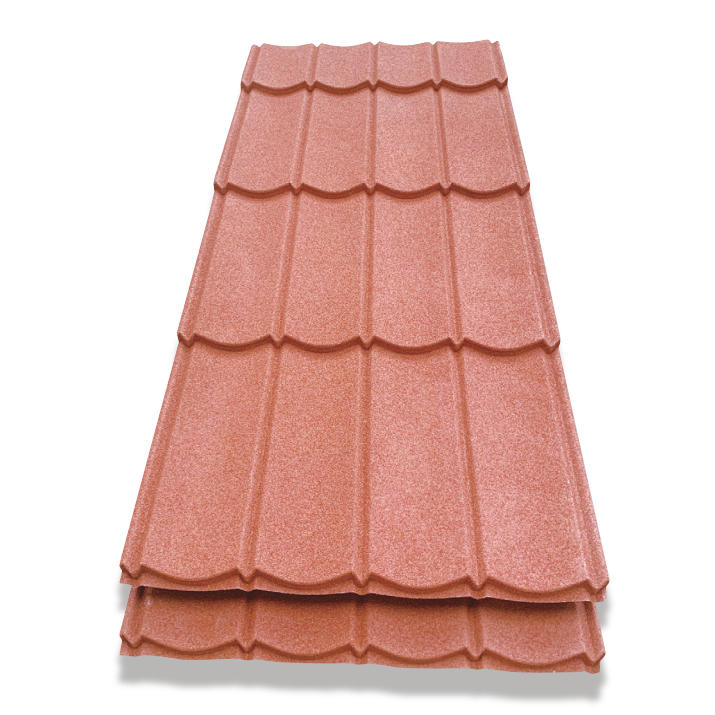

Joint Stone Coated Metal Roof Tiles

Modern Design. Superior Connection.

The Joint stone coated metal roof tile features a unique multi-section bond design that creates seamless connections between tiles. Engineered for modern architectural aesthetics, this tile combines the clean lines of contemporary design with the proven durability of stone-coated steel roofing.

Available in two configurations—Three Section and Four Section—the Joint tile offers flexibility for various roof designs while ensuring 50+ years of exceptional performance with superior weather resistance and structural integrity.

Ideal for: Modern residential homes, commercial buildings, architectural projects, contemporary villas, and industrial facilities requiring sleek, streamlined roofing solutions.

✓ Multi-Section Bond Design ✓ 50+ Years Lifespan ✓ Superior Weather Seal ✓ Modern Flat Profile ✓ Two Size Options

Technical Specifications

Two configurations to meet your project requirements

Three Section Bond Tile

Parameter	Specification
Tile Profile	Three Section Bond Tile
Tile Size	1190mm × 850mm
Installed Exposure	1160mm × 800mm
Installed Weight	About 5 kg/Sheet

Four Section Bond Tile

Parameter	Specification
Tile Profile	Four Section Bond Tile
Tile Size	1580mm × 850mm
Installed Exposure	1540mm × 800mm
Installed Weight	About 7 kg/Sheet

Common Specifications

Parameter	Specification
Base Material	Galvalume Steel(Aluminum Zinc Plated Steel Sheet), Natural Color Sand, Acrylic Resin Glue
Steel Thickness	0.25-0.55mm
Expected Lifespan	50+ years
